Table 17-2. 16-Bit Addressing Forms with the ModR/M Byte r8(/r) AL CL DL BL AH CH DH BH r16(/r) AX CX DX BX SP BP SI DI r32(/r) EAX ECX EDX EBX ESP EBP ESI EDI /digit (Opcode) 0 1 2 3 4 5 6 7 REG = 000 001 010 011 100 101 110 111 Effective +---Address--+ +Mod R/M+ +--------ModR/M Values in Hexadecimal--------+ [BX + SI] 000 00 08 10 18 20 28 30 38 [BX + DI] 001 01 09 11 19 21 29 31 39 [BP + SI] 010 02 0A 12 1A 22 2A 32 3A [BP + DI] 011 03 0B 13 1B 23 2B 33 3B [SI] 00 100 04 0C 14 1C 24 2C 34 3C [DI] 101 05 0D 15 1D 25 2D 35 3D disp16 110 06 0E 16 1E 26 2E 36 3E [BX] 111 07 0F 17 1F 27 2F 37 3F [BX+SI]+disp8 000 40 48 50 58 60 68 70 78 [BX+DI]+disp8 001 41 49 51 59 61 69 71 79 [BP+SI]+disp8 010 42 4A 52 5A 62 6A 72 7A [BP+DI]+disp8 011 43 4B 53 5B 63 6B 73 7B [SI]+disp8 01 100 44 4C 54 5C 64 6C 74 7C [DI]+disp8 101 45 4D 55 5D 65 6D 75 7D [BP]+disp8 110 46 4E 56 5E 66 6E 76 7E [BX]+disp8 111 47 4F 57 5F 67 6F 77 7F [BX+SI]+disp16 000 80 88 90 98 A0 A8 B0 B8 [BX+DI]+disp16 001 81 89 91 99 A1 A9 B1 B9 [BX+SI]+disp16 010 82 8A 92 9A A2 AA B2 BA [BX+DI]+disp16 011 83 8B 93 9B A3 AB B3 BB [SI]+disp16 10 100 84 8C 94 9C A4 AC B4 BC [DI]+disp16 101 85 8D 95 9D A5 AD B5 BD [BP]+disp16 110 86 8E 96 9E A6 AE B6 BE [BX]+disp16 111 87 8F 97 9F A7 AF B7 BF EAX/AX/AL 000 C0 C8 D0 D8 E0 E8 F0 F8 ECX/CX/CL 001 C1 C9 D1 D9 E1 E9 F1 F9 EDX/DX/DL 010 C2 CA D2 DA E2 EA F2 FA EBX/BX/BL 011 C3 CB D3 DB E3 EB F3 FB ESP/SP/AH 11 100 C4 CC D4 DC E4 EC F4 FC EBP/BP/CH 101 C5 CD D5 DD E5 ED F5 FD ESI/SI/DH 110 C6 CE D6 DE E6 EE F6 FE EDI/DI/BH 111 C7 CF D7 DF E7 EF F7 FF
Notes
disp8 denotes an 8-bit displacement following the ModR/M byte, to be sign-extended and added to the index. disp16 denotes a 16-bit displacement following the ModR/M byte, to be added to the index. Default segment register is SS for the effective addresses containing a BP index, DS for other effective addresses.Table 17-3. 32-Bit Addressing Forms with the ModR/M Byte r8(/r) AL CL DL BL AH CH DH BH r16(/r) AX CX DX BX SP BP SI DI r32(/r) EAX ECX EDX EBX ESP EBP ESI EDI /digit (Opcode) 0 1 2 3 4 5 6 7 REG = 000 001 010 011 100 101 110 111 Effective +---Address--+ +Mod R/M+ +---------ModR/M Values in Hexadecimal-------+ [EAX] 000 00 08 10 18 20 28 30 38 [ECX] 001 01 09 11 19 21 29 31 39 [EDX] 010 02 0A 12 1A 22 2A 32 3A [EBX] 011 03 0B 13 1B 23 2B 33 3B [--] [--] 00 100 04 0C 14 1C 24 2C 34 3C disp32 101 05 0D 15 1D 25 2D 35 3D [ESI] 110 06 0E 16 1E 26 2E 36 3E [EDI] 111 07 0F 17 1F 27 2F 37 3F disp8[EAX] 000 40 48 50 58 60 68 70 78 disp8[ECX] 001 41 49 51 59 61 69 71 79 disp8[EDX] 010 42 4A 52 5A 62 6A 72 7A disp8[EPX]; 011 43 4B 53 5B 63 6B 73 7B disp8[--] [--] 01 100 44 4C 54 5C 64 6C 74 7C disp8[ebp] 101 45 4D 55 5D 65 6D 75 7D disp8[ESI] 110 46 4E 56 5E 66 6E 76 7E disp8[EDI] 111 47 4F 57 5F 67 6F 77 7F disp32[EAX] 000 80 88 90 98 A0 A8 B0 B8 disp32[ECX] 001 81 89 91 99 A1 A9 B1 B9 disp32[EDX] 010 82 8A 92 9A A2 AA B2 BA disp32[EBX] 011 83 8B 93 9B A3 AB B3 BB disp32[--] [--] 10 100 84 8C 94 9C A4 AC B4 BC disp32[EBP] 101 85 8D 95 9D A5 AD B5 BD disp32[ESI] 110 86 8E 96 9E A6 AE B6 BE disp32[EDI] 111 87 8F 97 9F A7 AF B7 BF EAX/AX/AL 000 C0 C8 D0 D8 E0 E8 F0 F8 ECX/CX/CL 001 C1 C9 D1 D9 E1 E9 F1 F9 EDX/DX/DL 010 C2 CA D2 DA E2 EA F2 FA EBX/BX/BL 011 C3 CB D3 DB E3 EB F3 FB ESP/SP/AH 11 100 C4 CC D4 DC E4 EC F4 FC EBP/BP/CH 101 C5 CD D5 DD E5 ED F5 FD ESI/SI/DH 110 C6 CE D6 DE E6 EE F6 FE EDI/DI/BH 111 C7 CF D7 DF E7 EF F7 FF
Notes
[--] [--] means a SIB follows the ModR/M byte. disp8 denotes an 8-bit displacement following the SIB byte, to be sign-extended and added to the index. disp32 denotes a 32-bit displacement following the ModR/M byte, to be added to the index.Table 17-4. 32-Bit Addressing Forms with the SIB Byte r32 EAX ECX EDX EBX ESP [*] Base = 0 1 2 3 4 5 6 7 Base = 000 001 010 011 100 101 110 111 +Scaled Index+ +SS Index+ +--------ModR/M Values in Hexadecimal--------+ [EAX] 000 00 01 02 03 04 05 06 07 [ECX] 001 08 09 0A 0B 0C 0D 0E 0F [EDX] 010 10 11 12 13 14 15 16 17 [EBX] 011 18 19 1A 1B 1C 1D 1E 1F none 00 100 20 21 22 23 24 25 26 27 [EBP] 101 28 29 2A 2B 2C 2D 2E 2F [ESI] 110 30 31 32 33 34 35 36 37 [EDI] 111 38 39 3A 3B 3C 3D 3E 3F [EAX*2] 000 40 41 42 43 44 45 46 47 [ECX*2] 001 48 49 4A 4B 4C 4D 4E 4F [ECX*2] 010 50 51 52 53 54 55 56 57 [EBX*2] 011 58 59 5A 5B 5C 5D 5E 5F none 01 100 60 61 62 63 64 65 66 67 [EBP*2] 101 68 69 6A 6B 6C 6D 6E 6F [ESI*2] 110 70 71 72 73 74 75 76 77 [EDI*2] 111 78 79 7A 7B 7C 7D 7E 7F [EAX*4] 000 80 81 82 83 84 85 86 87 [ECX*4] 001 88 89 8A 8B 8C 8D 8E 8F [EDX*4] 010 90 91 92 93 94 95 96 97 [EBX*4] 011 98 89 9A 9B 9C 9D 9E 9F none 10 100 A0 A1 A2 A3 A4 A5 A6 A7 [EBP*4] 101 A8 A9 AA AB AC AD AE AF [ESI*4] 110 B0 B1 B2 B3 B4 B5 B6 B7 [EDI*4] 111 B8 B9 BA BB BC BD BE BF [EAX*8] 000 C0 C1 C2 C3 C4 C5 C6 C7 [ECX*8] 001 C8 C9 CA CB CC CD CE CF [EDX*8] 010 D0 D1 D2 D3 D4 D5 D6 D7 [EBX*8] 011 D8 D9 DA DB DC DD DE DF none 11 100 E0 E1 E2 E3 E4 E5 E6 E7 [EBP*8] 101 E8 E9 EA EB EC ED EE EF [ESI*8] 110 F0 F1 F2 F3 F4 F5 F6 F7 [EDI*8] 111 F8 F9 FA FB FC FD FE FF
Notes
[*] means a disp32 with no base if MOD is 00, [ESP] otherwise. This provides the following addressing modes:
disp32[index] (MOD=00)
disp8[EBP][index] (MOD=01)
disp32[EBP][index] (MOD=10)
17.2.2 How to Read the Instruction Set Pages
The following is an example of the format used for each 80386 instruction description in this chapter:CMC -- Complement Carry Flag
Opcode Instruction Clocks Description F5 CMC 2 Complement carry flagThe above table is followed by paragraphs labelled "Operation," "Description," "Flags Affected," "Protected Mode Exceptions," "Real Address Mode Exceptions," and, optionally, "Notes." The following sections explain the notational conventions and abbreviations used in these paragraphs of the instruction descriptions.
17.2.2.1 Opcode
The "Opcode" column gives the complete object code produced for each form of the instruction. When possible, the codes are given as hexadecimal bytes, in the same order in which they appear in memory. Definitions of entries other than hexadecimal bytes are as follows:- /digit:
- (digit is between 0 and 7) indicates that the ModR/M byte of the instruction uses only the r/m (register or memory) operand. The reg field contains the digit that provides an extension to the instruction's opcode.
- /r:
- indicates that the ModR/M byte of the instruction contains both a register operand and an r/m operand.
- cb, cw, cd, cp:
- a 1-byte (cb), 2-byte (cw), 4-byte (cd) or 6-byte (cp) value following the opcode that is used to specify a code offset and possibly a new value for the code segment register.
- ib, iw, id:
- a 1-byte (ib), 2-byte (iw), or 4-byte (id) immediate operand to the instruction that follows the opcode, ModR/M bytes or scale-indexing bytes. The opcode determines if the operand is a signed value. All words and doublewords are given with the low-order byte first.
- +rb, +rw, +rd:
- a register code, from 0 through 7, added to the hexadecimal
byte given at the left of the plus sign to form a single opcode byte. The
codes are
rb rw rd AL = 0 AX = 0 EAX = 0 CL = 1 CX = 1 ECX = 1 DL = 2 DX = 2 EDX = 2 BL = 3 BX = 3 EBX = 3 AH = 4 SP = 4 ESP = 4 CH = 5 BP = 5 EBP = 5 DH = 6 SI = 6 ESI = 6 BH = 7 DI = 7 EDI = 7
17.2.2.2 Instruction
The "Instruction" column gives the syntax of the instruction statement as it would appear in an ASM386 program. The following is a list of the symbols used to represent operands in the instruction statements:- rel8:
- a relative address in the range from 128 bytes before the end of the instruction to 127 bytes after the end of the instruction.
- rel16, rel32:
- a relative address within the same code segment as the instruction assembled. rel16 applies to instructions with an operand-size attribute of 16 bits; rel32 applies to instructions with an operand-size attribute of 32 bits.
- ptr16:16, ptr16:32:
- a FAR pointer, typically in a code segment different from that of the instruction. The notation 16:16 indicates that the value of the pointer has two parts. The value to the right of the colon is a 16-bit selector or value destined for the code segment register. The value to the left corresponds to the offset within the destination segment. ptr16:16 is used when the instruction's operand-size attribute is 16 bits; ptr16:32 is used with the 32-bit attribute.
- r8:
- one of the byte registers AL, CL, DL, BL, AH, CH, DH, or BH.
- r16:
- one of the word registers AX, CX, DX, BX, SP, BP, SI, or DI.
- r32:
- one of the doubleword registers EAX, ECX, EDX, EBX, ESP, EBP, ESI, or EDI.
- imm8:
- an immediate byte value. imm8 is a signed number between -128 and +127 inclusive. For instructions in which imm8 is combined with a word or doubleword operand, the immediate value is sign-extended to form a word or doubleword. The upper byte of the word is filled with the topmost bit of the immediate value.
- imm16:
- an immediate word value used for instructions whose operand-size attribute is 16 bits. This is a number between -32768 and +32767 inclusive.
- imm32:
- an immediate doubleword value used for instructions whose operand-size attribute is 32-bits. It allows the use of a number between +2147483647 and -2147483648.
- r/m8:
- a one-byte operand that is either the contents of a byte register (AL, BL, CL, DL, AH, BH, CH, DH), or a byte from memory.
- r/m16:
- a word register or memory operand used for instructions whose operand-size attribute is 16 bits. The word registers are: AX, BX, CX, DX, SP, BP, SI, DI. The contents of memory are found at the address provided by the effective address computation.
- r/m32:
- a doubleword register or memory operand used for instructions whose operand-size attribute is 32-bits. The doubleword registers are: EAX, EBX, ECX, EDX, ESP, EBP, ESI, EDI. The contents of memory are found at the address provided by the effective address computation.
- m8:
- a memory byte addressed by DS:SI or ES:DI (used only by string instructions).
- m16:
- a memory word addressed by DS:SI or ES:DI (used only by string instructions).
- m32:
- a memory doubleword addressed by DS:SI or ES:DI (used only by string instructions).
- m16:16, M16:32:
- a memory operand containing a far pointer composed of two numbers. The number to the left of the colon corresponds to the pointer's segment selector. The number to the right corresponds to its offset.
- m16 & 32, m16 & 16, m32 & 32:
- a memory operand consisting of data item pairs whose sizes are indicated on the left and the right side of the ampersand. All memory addressing modes are allowed. m16 & 16 and m32 & 32 operands are used by the BOUND instruction to provide an operand containing an upper and lower bounds for array indices. m16 & 32 is used by LIDT and LGDT to provide a word with which to load the limit field, and a doubleword with which to load the base field of the corresponding Global and Interrupt Descriptor Table Registers.
- moffs8, moffs16, moffs32:
- (memory offset) a simple memory variable of type BYTE, WORD, or DWORD used by some variants of the MOV instruction. The actual address is given by a simple offset relative to the segment base. No ModR/M byte is used in the instruction. The number shown with moffs indicates its size, which is determined by the address-size attribute of the instruction.
- Sreg:
- a segment register. The segment register bit assignments are ES=0, CS=1, SS=2, DS=3, FS=4, and GS=5.
17.2.2.3 Clocks
The "Clocks" column gives the number of clock cycles the instruction takes to execute. The clock count calculations makes the following assumptions:- The instruction has been prefetched and decoded and is ready for execution.
- Bus cycles do not require wait states.
- There are no local bus HOLD requests delaying processor access to the bus.
- No exceptions are detected during instruction execution.
- Memory operands are aligned.
The following symbols are used in the clock count specifications:
- n, which represents a number of repetitions.
- m, which represents the number of components in the next instruction executed, where the entire displacement (if any) counts as one component, the entire immediate data (if any) counts as one component, and every other byte of the instruction and prefix(es) each counts as one component.
- pm=, a clock count that applies when the instruction executes in Protected Mode. pm= is not given when the clock counts are the same for Protected and Real Address Modes.
- The type of TSS used to represent the current task (386 TSS or 286 TSS).
- The type of TSS used to represent the new task.
- Whether the current task is in V86 mode.
- Whether the new task is in V86 mode.
Table 17-5. Task Switch Times for Exceptions
New Task
Old 386 TSS 286 TSS
Task VM = 0
386 VM = 0 309 282
TSS
386 VM = 1 314 231
TSS
286 307 282
TSS
17.2.2.4 Description
The "Description" column following the "Clocks" column briefly explains the various forms of the instruction. The "Operation" and "Description" sections contain more details of the instruction's operation.17.2.2.5 Operation
The "Operation" section contains an algorithmic description of the instruction which uses a notation similar to the Algol or Pascal language. The algorithms are composed of the following elements:- Comments are enclosed within the symbol pairs "(*" and "*)".
- Compound statements are enclosed between the keywords of the "if" statement (IF, THEN, ELSE, FI) or of the "do" statement (DO, OD), or of the "case" statement (CASE ... OF, ESAC).
- A register name implies the contents of the register. A register name enclosed in brackets implies the contents of the location whose address is contained in that register. For example, ES:[DI] indicates the contents of the location whose ES segment relative address is in register DI. [SI] indicates the contents of the address contained in register SI relative to SI's default segment (DS) or overridden segment.
- Brackets also used for memory operands, where they mean that the contents of the memory location is a segment-relative offset. For example, [SRC] indicates that the contents of the source operand is a segment-relative offset.
- A := B; indicates that the value of B is assigned to A.
- The symbols =, <>, >=, and <= are relational operators used to compare two values, meaning equal, not equal, greater or equal, less or equal, respectively. A relational expression such as A = B is TRUE if the value of A is equal to B; otherwise it is FALSE.
- OperandSize represents the operand-size attribute of the instruction,
which is either 16 or 32 bits. AddressSize represents the address-size
attribute, which is either 16 or 32 bits. For example,
IF instruction = CMPSW THEN OperandSize := 16; ELSE IF instruction = CMPSD THEN OperandSize := 32; FI; FI;indicates that the operand-size attribute depends on the form of the CMPS instruction used. Refer to the explanation of address-size and operand-size attributes at the beginning of this chapter for general guidelines on how these attributes are determined. - StackAddrSize represents the stack address-size attribute associated with the instruction, which has a value of 16 or 32 bits, as explained earlier in the chapter.
- SRC represents the source operand. When there are two operands, SRC is the one on the right.
- DEST represents the destination operand. When there are two operands, DEST is the one on the left.
- LeftSRC, RightSRC distinguishes between two operands when both are source operands.
- eSP represents either the SP register or the ESP register depending on the setting of the B-bit for the current stack segment.
- Truncate to 16 bits(value) reduces the size of the value to fit in 16 bits by discarding the uppermost bits as needed.
- Addr(operand) returns the effective address of the operand (the result of the effective address calculation prior to adding the segment base).
- ZeroExtend(value) returns a value zero-extended to the operand-size attribute of the instruction. For example, if OperandSize = 32, ZeroExtend of a byte value of -10 converts the byte from F6H to doubleword with hexadecimal value 000000F6H. If the value passed to ZeroExtend and the operand-size attribute are the same size, ZeroExtend returns the value unaltered.
- SignExtend(value) returns a value sign-extended to the operand-size attribute of the instruction. For example, if OperandSize = 32, SignExtend of a byte containing the value -10 converts the byte from F6H to a doubleword with hexadecimal value FFFFFFF6H. If the value passed to SignExtend and the operand-size attribute are the same size, SignExtend returns the value unaltered.
- Push(value) pushes a value onto the stack. The number of bytes pushed
is determined by the operand-size attribute of the instruction. The
action of Push is as follows:
IF StackAddrSize = 16 THEN IF OperandSize = 16 THEN SP := SP - 2; SS:[SP] := value; (* 2 bytes assigned starting at byte address in SP *) ELSE (* OperandSize = 32 *) SP := SP - 4; SS:[SP] := value; (* 4 bytes assigned starting at byte address in SP *) FI; ELSE (* StackAddrSize = 32 *) IF OperandSize = 16 THEN ESP := ESP - 2; SS:[ESP] := value; (* 2 bytes assigned starting at byte address in ESP*) ELSE (* OperandSize = 32 *) ESP := ESP - 4; SS:[ESP] := value; (* 4 bytes assigned starting at byte address in ESP*) FI; FI; - Pop(value) removes the value from the top of the stack and returns it.
The statement EAX := Pop( ); assigns to EAX the 32-bit value that Pop
took from the top of the stack. Pop will return either a word or a
doubleword depending on the operand-size attribute. The action of Pop
is as follows:
IF StackAddrSize = 16 THEN IF OperandSize = 16 THEN ret val := SS:[SP]; (* 2-byte value *) SP := SP + 2; ELSE (* OperandSize = 32 *) ret val := SS:[SP]; (* 4-byte value *) SP := SP + 4; FI; ELSE (* StackAddrSize = 32 *) IF OperandSize = 16 THEN ret val := SS:[ESP]; (* 2 bytes value *) ESP := ESP + 2; ELSE (* OperandSize = 32 *) ret val := SS:[ESP]; (* 4 bytes value *) ESP := ESP + 4; FI; FI; RETURN(ret val); (*returns a word or doubleword*) - Bit[BitBase, BitOffset] returns the address of a bit within a bit
string, which is a sequence of bits in memory or a register. Bits are
numbered from low-order to high-order within registers and within
memory bytes. In memory, the two bytes of a word are stored with the
low-order byte at the lower address.

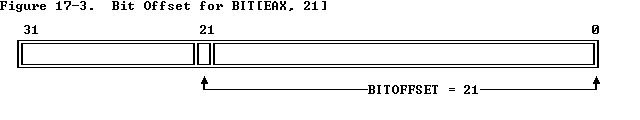

If the base operand is a register, the offset can be in the range 0..31. This offset addresses a bit within the indicated register. An example, "BIT[EAX, 21]," is illustrated in Figure 17-3 .
If BitBase is a memory address, BitOffset can range from -2 gigabits to 2 gigabits. The addressed bit is numbered (Offset MOD 8) within the byte at address (BitBase + (BitOffset DIV 8)), where DIV is signed division with rounding towards negative infinity, and MOD returns a positive number. This is illustrated in Figure 17-4 .
- I-O-Permission(I-O-Address, width) returns TRUE or FALSE depending on
the I/O permission bitmap and other factors. This function is defined as
follows:
IF TSS type is 286 THEN RETURN FALSE; FI; Ptr := [TSS + 66]; (* fetch bitmap pointer *) BitStringAddr := SHR (I-O-Address, 3) + Ptr; MaskShift := I-O-Address AND 7; CASE width OF: BYTE: nBitMask := 1; WORD: nBitMask := 3; DWORD: nBitMask := 15; ESAC; mask := SHL (nBitMask, MaskShift); CheckString := [BitStringAddr] AND mask; IF CheckString = 0 THEN RETURN (TRUE); ELSE RETURN (FALSE); FI; - Switch-Tasks is the task switching function described in
Chapter 7.
17.2.2.6 Description
The "Description" section contains further explanation of the instruction's operation.
17.2.2.7 Flags Affected
The "Flags Affected" section lists the flags that are affected by the instruction, as follows:- If a flag is always cleared or always set by the instruction, the value is given (0 or 1) after the flag name. Arithmetic and logical instructions usually assign values to the status flags in the uniform manner described in Appendix C. Nonconventional assignments are described in the "Operation" section.
- The values of flags listed as "undefined" may be changed by the instruction in an indeterminate manner.
17.2.2.8 Protected Mode Exceptions
This section lists the exceptions that can occur when the instruction is executed in 80386 Protected Mode. The exception names are a pound sign (#) followed by two letters and an optional error code in parentheses. For example, #GP(0) denotes a general protection exception with an error code of 0. Table 17-6 associates each two-letter name with the corresponding interrupt number.Chapter 9 describes the exceptions and the 80386 state upon entry to the exception.
Application programmers should consult the documentation provided with their operating systems to determine the actions taken when exceptions occur.
Table 17-6. 80386 Exceptions Mnemonic Interrupt Description #UD 6 Invalid opcode #NM 7 Coprocessor not available #DF 8 Double fault #TS 10 Invalid TSS #NP 11 Segment or gate not present #SS 12 Stack fault #GP 13 General protection fault #PF 14 Page fault #MF 16 Math (coprocessor) fault
17.2.2.9 Real Address Mode Exceptions
Because less error checking is performed by the 80386 in Real Address Mode, this mode has fewer exception conditions . Refer to Chapter 14 for further information on these exceptions.17.2.2.10 Virtual-8086 Mode Exceptions
Virtual 8086 tasks provide the ability to simulate Virtual 8086 machines. Virtual 8086 Mode exceptions are similar to those for the 8086 processor, but there are some differences . Refer to Chapter 15 for details .
